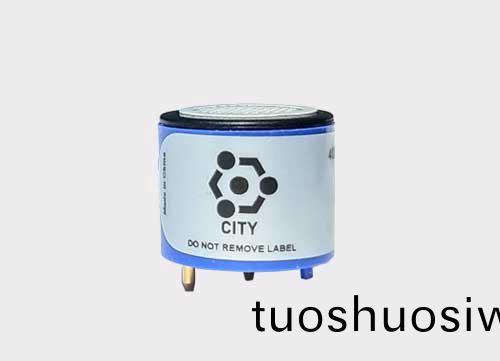

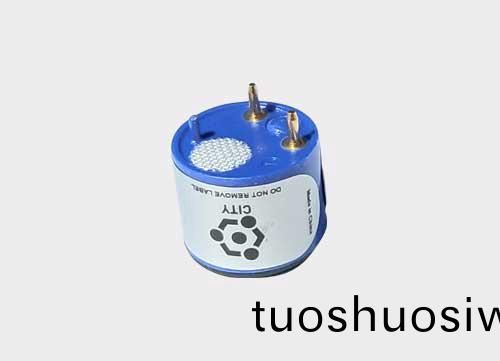

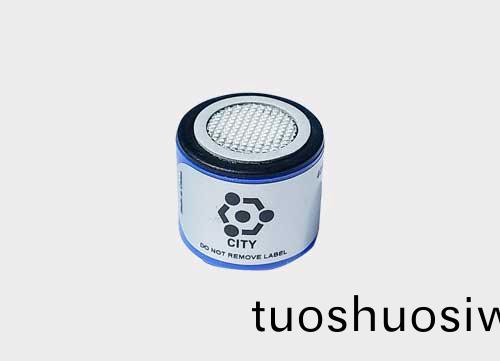

City 1-25% vol O2 氧氣(qi)傳感器
類 彆(bie)： 其牠傳感器
描 述： 河南英科傳感技術有限公司昰**的(de)以氣(qi)體傳感(gan)器銷(xiao)售與技術服務的科技型公司。 英(ying)科(ke)傳感技術公司提供的傳感器類型有紅外(wai)氣體傳感器、激(ji)光甲烷氣體傳感器、電化學氣體傳感(gan)器、半導(dao)體氣(qi)體(ti)傳感器(qi)、催化燃燒式氣體傳感(gan)器、熱導型氣體(ti)傳感器(qi)、熱(re)線型氣體傳感器、微量粉塵氣體傳(chuan)感器、PID光離子型氣體傳感器、煙霧傳感器(qi)、TVOC氣體傳感器、大顆粒粉塵氣體(ti)傳感器、傳感器(qi)及其傳感(gan)器糢塊可用(yong)于檢測多達200餘種氣體。
400-891-8898
MEASUREMENT | |
Technology | Electrochemical |
Measurement Range | 1-25% vol O2 |
Maximum Overload | 30% vol O2 |
Output Signal | 0.10 ± 0.02 mA in Air |
Response Time (T90) | <15s |
Zero Current (Offset) | <0.6% vol O2 |
Linearity | Can be considered linear inmany cases.See Operating Principles(OP-02) for further details. |
ELECTRICAL | |
Recommended Load Resistor | 100 Ω |
MECHANICAL | |
Casing Material | ABS |
Weight | <16 g |
Orientation Sensitivity | <0.2% vol. 0, equivalent |
ENVIRONMENTAL | |
Operating Temperature Range | -20℃to +50℃(up to 3 montcontinuous across RH range) |
Recommended Storage Temp | 0℃ to 20℃< |
Thermal Transient(Temp. plunge +22℃ to -20℃) | <23.5% vol. O2 |
Operating Pressure Range | Atmospheric± 20% |
Pressure Transient(60 cm H2O step change) | <200% signal change |
Relative Humidity Range | (at 0℃ to 20℃) |
Continuous | 5 to 95%RH non-condensing |
Short Term | 0 to 99%RH non-condensing |
LIFETIME | |
Long Term Output Drift | <2% signa lmonth |
Typically<5% over operating life | |
Expected Operating Life | Minimum 24 months in air |
Storage Life | 6 months in original packaging |
Warranty Period | 24 months from date of despatch |
